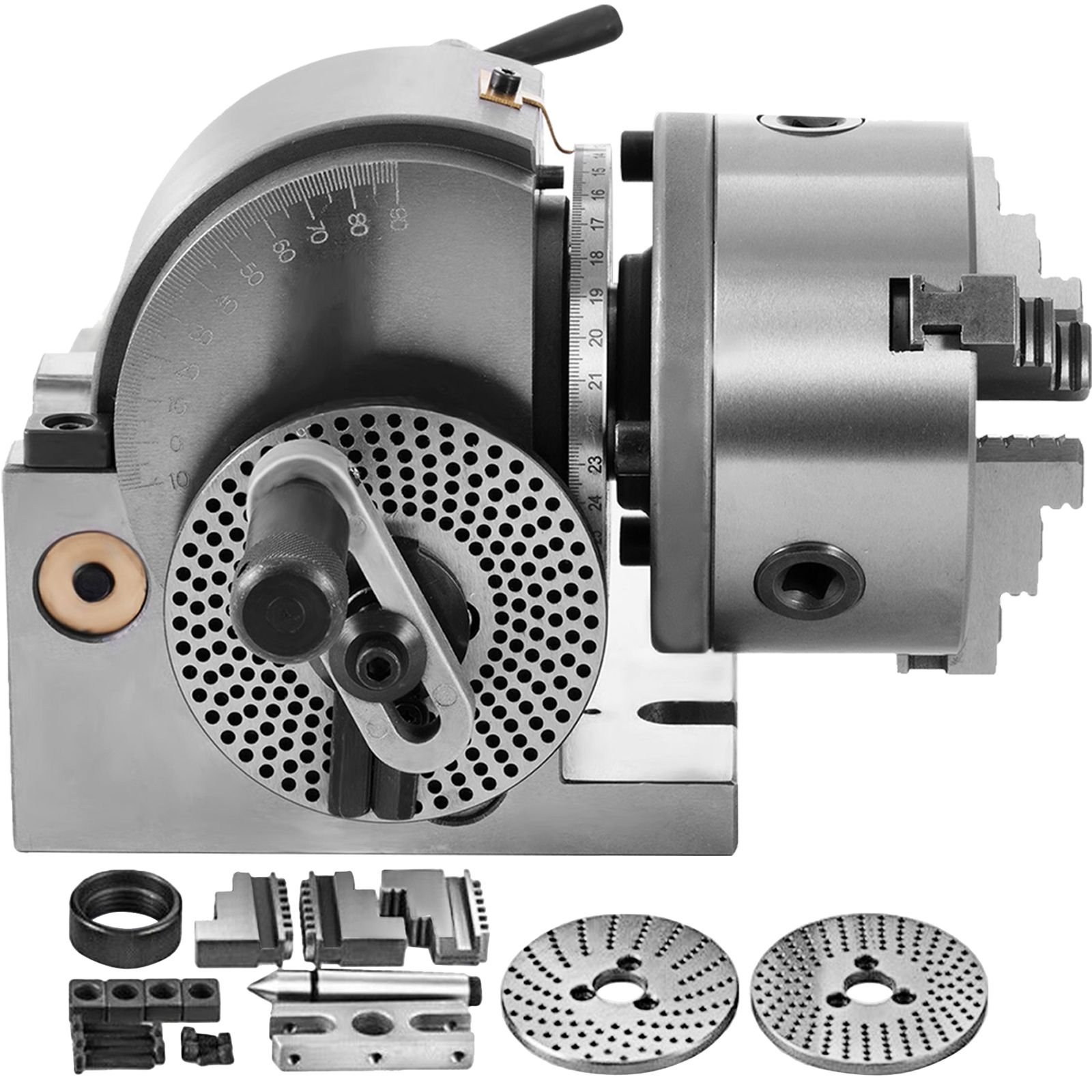

Dividing Head BS-0 5Inch 3 Jaw Chuck Dividing Head Set Precision Semi Universal Dividing Head for Milling Machine Rotary Table Tailstock Milling Set (5 Inch Chuck)

BS-0 Precision Dividing Head

MT2 Headstock Taper & Complete Set & Simple Operation

The indexing head doesn’t only look great but allows you to do more with your milling machine: measuring specific angles and dividing a circle into equidistant arcs. It comes with 3 interchangeable indexing plates and a tailstock to ensure more precise and stable work. It will be your perfect assistant to machine the flutes of a milling cutter, cut the teeth of a gear, curved mill slots, or drill a bolt hole circle around the circumference of a part.

• Solid Cast Iron Construction

• Adjustable Dividing Head

• High Precision Indexing Plate

• Strong Workpiece Support

is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality

• Incredibly Low Prices

• Fast & Secure Delivery

• 30-Day Free Returns

• 24/7 Attentive Service

Rigid & Sturdy Body

The indexing head features a long service life due to its rigid quality. It is designed with a mirror finish that is wear-resistant and tear-resistant and looks low-profile.

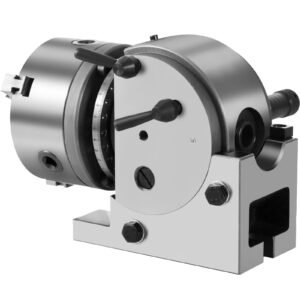

Adjustable Headstock

The dividing head is enabled to tilt from 10 degrees below horizontal to 90 degrees vertical. And that will be convenient if you want to cut the part from a certain angle.

Direct Indexing Plate

By turning the 1st level that extrudes the pin, the pin goes into the plate and you can divide the full circle into 2, 3, 4, 6, 8, 12, or 24 divisions. The other level prevents the spindle from vibrating during machining.

More Precise Plates

The high precision performance of the indexing head is achieved with indirect indexing plates A, B, and C. All divisions 2-50 can be done, but some from 51 to 380 cannot be obtained. Check the manual before setting.

Strong MT2 Tailstock

The MT2 tailstock gives strong support to the workpiece being machined. It is particularly useful when the workpiece is relatively long and slender.

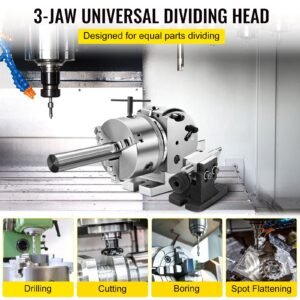

Wide Application

The rotary indexer is used on the tables of milling machines and other machine tools including drill presses, grinders, and boring machines.

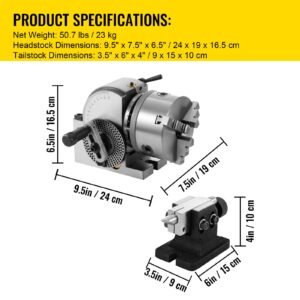

Specifications

• Swing: 6-1/2" (16.5 cm)

• Center Height: 3-15/16" (10 cm)

• Headstock Taper: MT2

• Net Weight: 50.7 lbs (23 kg)

• Headstock Dimensions: 9.5" x 7.5" x 6.5" ( 24 x 19 x 16.5 cm)

• Tailstock Dimensions: 3.5" x 6" x 4" (9 x 15 x 10 cm)

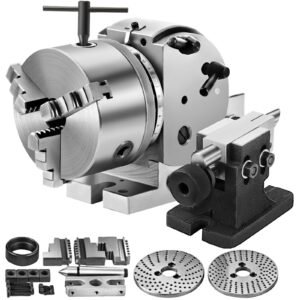

Package Content

• 1 x Dividing Head

• 3 x Dividing Plates

• 1 x Tailstock

• 1 x 125 mm 3-Jaw Chuck
