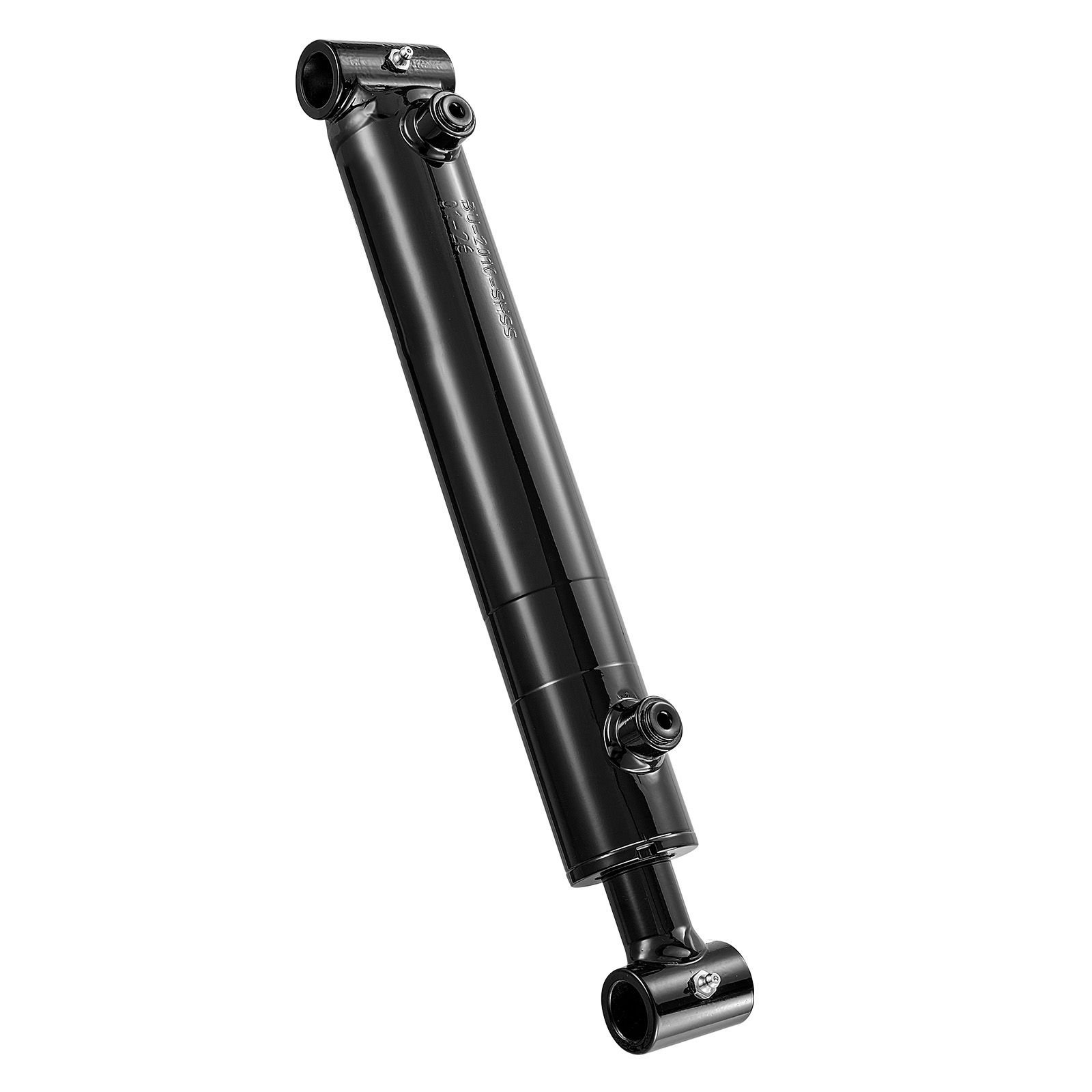

Double Acting Hydraulic Cylinder, 2" Bore x 10" Stroke, Max 3500PSI Hydraulic Cylinder, Heavy-Duty Welded Cross Tube Cylinders with 1" Pin Hole & SAE #6 Port for Agricultural Machinery, Tractors

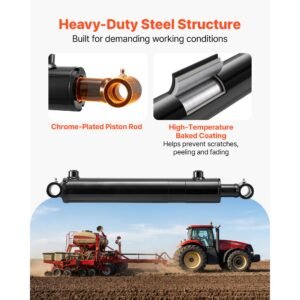

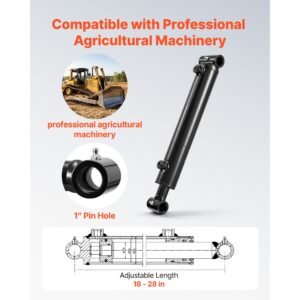

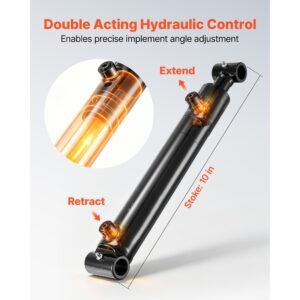

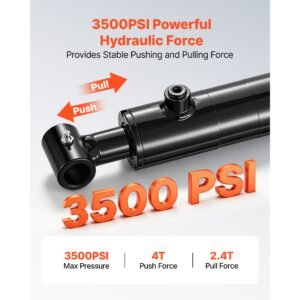

Key Specifications: Bore: 2 in (50.8 mm), Stroke: 10 in (254 mm), Retracted Length: 18 in (457 mm), Extended Length: 28 in (711 mm), Port Size: SAE #6, Pin Hole Diameter: 1 in Efficient Hydraulic Control: Driven by hydraulic pressure on both sides of the piston, this double-acting hydraulic cylinder delivers stable, controlled push-and-pull motion for smoother agricultural machinery operation High-Pressure Hydraulic Power: Built for demanding workloads, this hydraulic cylinder supports 2900 PSI rated pressure and up to 3500 PSI max pressure, delivering steady hydraulic force to improve equipment operating efficiency Powerful Hydraulic Force: This cross tube hydraulic cylinder supports up to 8928 lbs (4 Ton) column load capacity while delivering 4 Ton push force and 2.4 Ton pull force (at 20 MPa), providing reliable power for pushing and pulling applications Heavy-Duty Steel Construction: Built with a high-seal hydraulic structure, chrome-plated piston rod, and high-temperature baked coating to reduce leakage, resist wear and corrosion, and ensure stable performance in demanding work conditions
