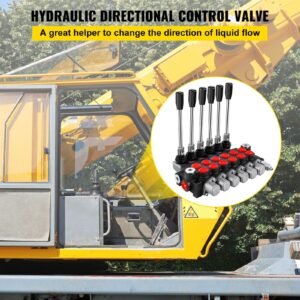

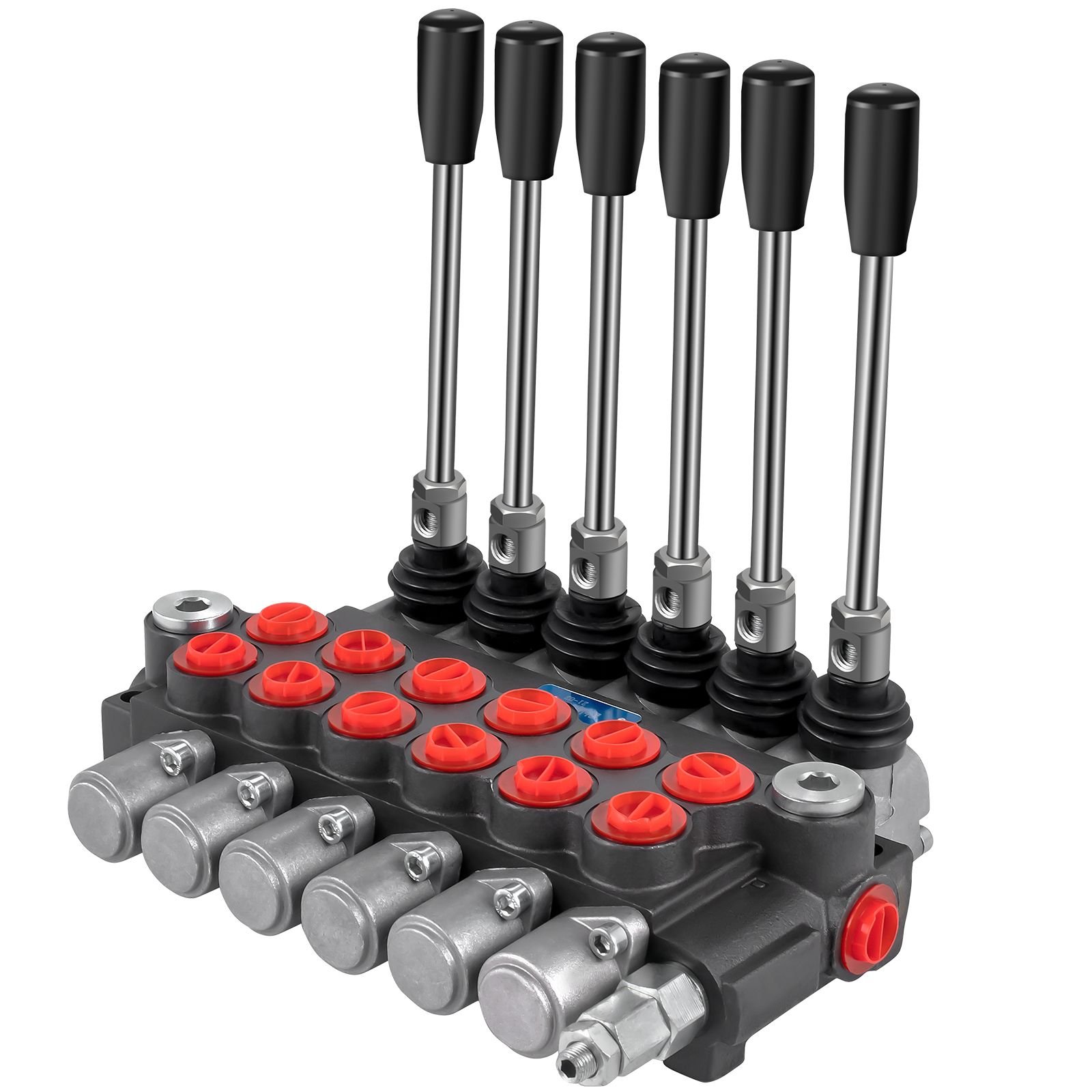

6 Spool 11gpm Hydraulic Directional Control Valve

Our hydraulic spool control valve has been specifically designed for use in mobile hydraulic applications. It is compact but has a flow capacity of 11GPM at 3600psi. This valve is an alternative to currently available monoblocks. It is supplied with an adjustable relief valve and levers as standard. In addition, the valve comes with a double-acting cylinder spool as standard.

• Hydraulic Spool Valve

• Double Acting Cylinders

• Great Inner Valve

• Compact Structure

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

@media screen and (max-width: 750px) { #h5 { display: block; overflow-x: hidden; font-family: Roboto, Open Sans, Helvetica, Arial, sans-serif; } #pc { display: none; } } @media (min-width: 750px) { #h5 { display: none; } #pc { display: block; font-family: Open sans, Arial, Helvetica, sans-serif; } } .flex-item-content { margin-left: 16px; } .flex-item-content-item-describe { width: 100%; height: auto; } .flex-item-txt { margin-top: 14px; } .pcdescribe-uls { background: #f3f3f3; border-radius: 8px; padding: 18px 22px; margin-top: 11px; border: 1px solid #ddd; } .pcdescribe-uls-li { list-style: none !important; margin: 0 !important; padding: 0 !important; } .pcdescribe-uls-lis { color: #000; font-size: 14px; list-style: none; text-align: left; } .pcdescribe-uls-lis-circle { display: inline-block; background: #000; border-radius: 50%; margin-right: 8px; width: 6px; height: 6px; vertical-align: middle; } .flex-item-txt-title-describete { color: #000; font-size: 14px; font-weight: bold; } .pcdescribe-title { font-size: 14px; color: #000; font-weight: bold; margin-top: 14px; } /* #h5 { font-size: 100px; } */ .description2 { text-align: center; margin-top: 1.33em; padding: 0 0.15em; } .description-img2 { height: auto; width: 100%; } .description-title2 { color: #000; font-size: 0.26em; font-weight: bold; margin-top: 4.5em; text-align: center; } .description-txt { color: #000; font-size: 0.24em; margin-top: 0.667em; } .description-title { color: #000; font-size: 0.26em; font-weight: bold; margin-top: 0.885em; } .describe-uls { margin-top: 0.26em; background: #f0f2f2; padding: 0.14em 0.16em; border-radius: 0.06em; } .describe-uls-li { list-style: none; padding: 0 !important; margin: 0 !important; } .describe-uls-lis { position: relative; list-style: none; font-size: 0.24em; color: #000; line-height: 1.5; } .describe-uls-circle { width: 0.333em; height: 0.333em; border-radius: 50%; background: #000; display: inline-block; vertical-align: middle; margin-right: 0.292em; }

Hydraulic Loader Valve

This hydraulic directional control valve is designed to manage and direct hydraulic oil flow between hydraulic pumps and hydraulic cylinders, motors, tanks, etc.

Double-Acting Cylinders

All spools are standard double acting with spring return to the neutral position, ideal for double-acting cylinders.

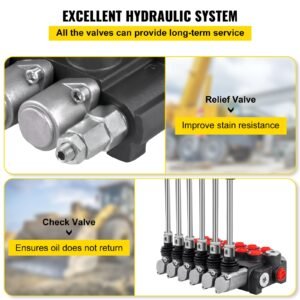

Inner Check/Relief Valve

The valve body’s check valve and check valve can ensure that the hydraulic oil does not return and help you complete your work better and securely.

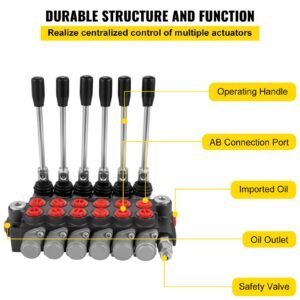

Durable & Rigid Structure

Durable iron construction, precision ground, and rigid chrome-plated spools provide long-term usage. It’s features rust-resistance and wear-resistance.

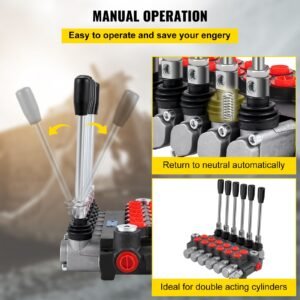

Compact Handle Design

The control handle is convenient to operate, which has a spring on the bottom of the handle that resets it to the neutral position.

Wide Application

Ideal for use in forklifts, small factory machinery, small agricultural machinery, small hydraulic presses, punching machines, and other processing equipments.

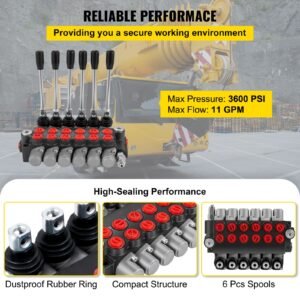

Specifications

• Model: 6spool113600

• Max operating pressure: 3600psi

• Flow Rating: 11gpm (40l/min)

• Relief Valve: Adjustable

• Center System: Open

• Spool Count: 6-Spool

• Valve Operation: Manual

• A, B port: 1/2" BSPP

• P, T, N port: 1/2" BSPP

Package Content

• 1 x 6 Spool Hydraulic Directional Control Valve

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

@media screen and (max-width: 750px) { #h5 { display: block; overflow-x: hidden; font-family: Roboto, Open Sans, Helvetica, Arial, sans-serif; } #pc { display: none; } } @media (min-width: 750px) { #h5 { display: none; } #pc { display: block; font-family: Open sans, Arial, Helvetica, sans-serif; } } .flex-item-content { margin-left: 16px; } .flex-item-content-item-describe { width: 100%; height: auto; } .flex-item-txt { margin-top: 14px; } .pcdescribe-uls { background: #f3f3f3; border-radius: 8px; padding: 18px 22px; margin-top: 11px; border: 1px solid #ddd; } .pcdescribe-uls-li { list-style: none !important; margin: 0 !important; padding: 0 !important; } .pcdescribe-uls-lis { color: #000; font-size: 14px; list-style: none; text-align: left; } .pcdescribe-uls-lis-circle { display: inline-block; background: #000; border-radius: 50%; margin-right: 8px; width: 6px; height: 6px; vertical-align: middle; } .flex-item-txt-title-describete { color: #000; font-size: 14px; font-weight: bold; } .pcdescribe-title { font-size: 14px; color: #000; font-weight: bold; margin-top: 14px; } /* #h5 { font-size: 100px; } */ .description2 { text-align: center; margin-top: 1.33em; padding: 0 0.15em; } .description-img2 { height: auto; width: 100%; } .description-title2 { color: #000; font-size: 0.26em; font-weight: bold; margin-top: 4.5em; text-align: center; } .description-txt { color: #000; font-size: 0.24em; margin-top: 0.667em; } .description-title { color: #000; font-size: 0.26em; font-weight: bold; margin-top: 0.885em; } .describe-uls { margin-top: 0.26em; background: #f0f2f2; padding: 0.14em 0.16em; border-radius: 0.06em; } .describe-uls-li { list-style: none; padding: 0 !important; margin: 0 !important; } .describe-uls-lis { position: relative; list-style: none; font-size: 0.24em; color: #000; line-height: 1.5; } .describe-uls-circle { width: 0.333em; height: 0.333em; border-radius: 50%; background: #000; display: inline-block; vertical-align: middle; margin-right: 0.292em; }

6 Spool 11gpm Hydraulic Directional Control Valve

Our hydraulic spool control valve has been specifically designed for use in mobile hydraulic applications. It is compact but has a flow capacity of 11GPM at 3600psi. This valve is an alternative to currently available monoblocks. It is supplied with an adjustable relief valve and levers as standard. In addition, the valve comes with a double-acting cylinder spool as standard.

• Hydraulic Spool Valve
• Double Acting Cylinders
• Great Inner Valve
• Compact Structure

Hydraulic Loader Valve

This hydraulic directional control valve is designed to manage and direct hydraulic oil flow between hydraulic pumps and hydraulic cylinders, motors, tanks, etc.

Double-Acting Cylinders

All spools are standard double acting with spring return to the neutral position, ideal for double-acting cylinders.

Inner Check/Relief Valve

The valve body’s check valve and check valve can ensure that the hydraulic oil does not return and help you complete your work better and securely.

Durable & Rigid Structure

Durable iron construction, precision ground, and rigid chrome-plated spools provide long-term usage. It’s features rust-resistance and wear-resistance.

Compact Handle Design

The control handle is convenient to operate, which has a spring on the bottom of the handle that resets it to the neutral position.

Wide Application

Ideal for use in forklifts, small factory machinery, small agricultural machinery, small hydraulic presses, punching machines, and other processing equipments.

Package Content

• 1 x 6 Spool Hydraulic Directional Control Valve

Specifications

• Model: 6spool113600
• Max operating pressure: 3600psi
• Flow Rating: 11gpm (40l/min)
• Relief Valve: Adjustable
• Center System: Open
• Spool Count: 6-Spool
• Valve Operation: Manual
• A, B port: 1/2" BSPP
• P, T, N port: 1/2" BSPP
