PTO Shaft, 1-3/8" PTO Drive Shaft, 6 Spline Both Ends PTO Driveline Shaft, Series 4 Tractor PTO Shaft, 31.5"-41" Brush Hog PTO Shaft, Yellow PTO Shaft with Slip Clutch for Bush Hog/Finish Mow

PTO Drive Shaft

1-3/8" 6-spline ends ＆ 31.5"-41" ＆ Series 4

This splined PTO shaft is built from sturdy steel and features 6-spline tractor and implement ends. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly. Keep rolling through work, our drive shaft will make sure the job gets done.

• Sturdy and Durable

• 6 Spline Ends

• Adjustable Length

• Easy Assembly ＆ Safer Use

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality

• Incredibly Low Prices

• Fast & Secure Delivery

• 30-Day Free Returns

• 24/7 Attentive Service

Durable PTO Shaft

This T4 tiller PTO shaft is built from high-quality 20CrMnTi carburized steel and Q345 tube steel, with a yellow-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.

Perfect Match

With 31.5"-41" extendable length and featuring 1-3/8" 6-spline on both tractor and implement ends (include a slip clutch), the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.

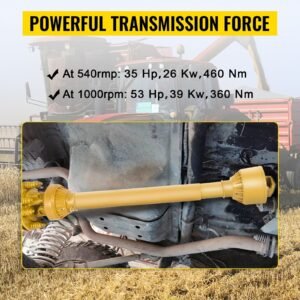

Powerful Transmission Force

Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 35 hp, 26 kw, and 460 nm torque; 53hp, 39kw, and 360 nm at 1000 rpm.

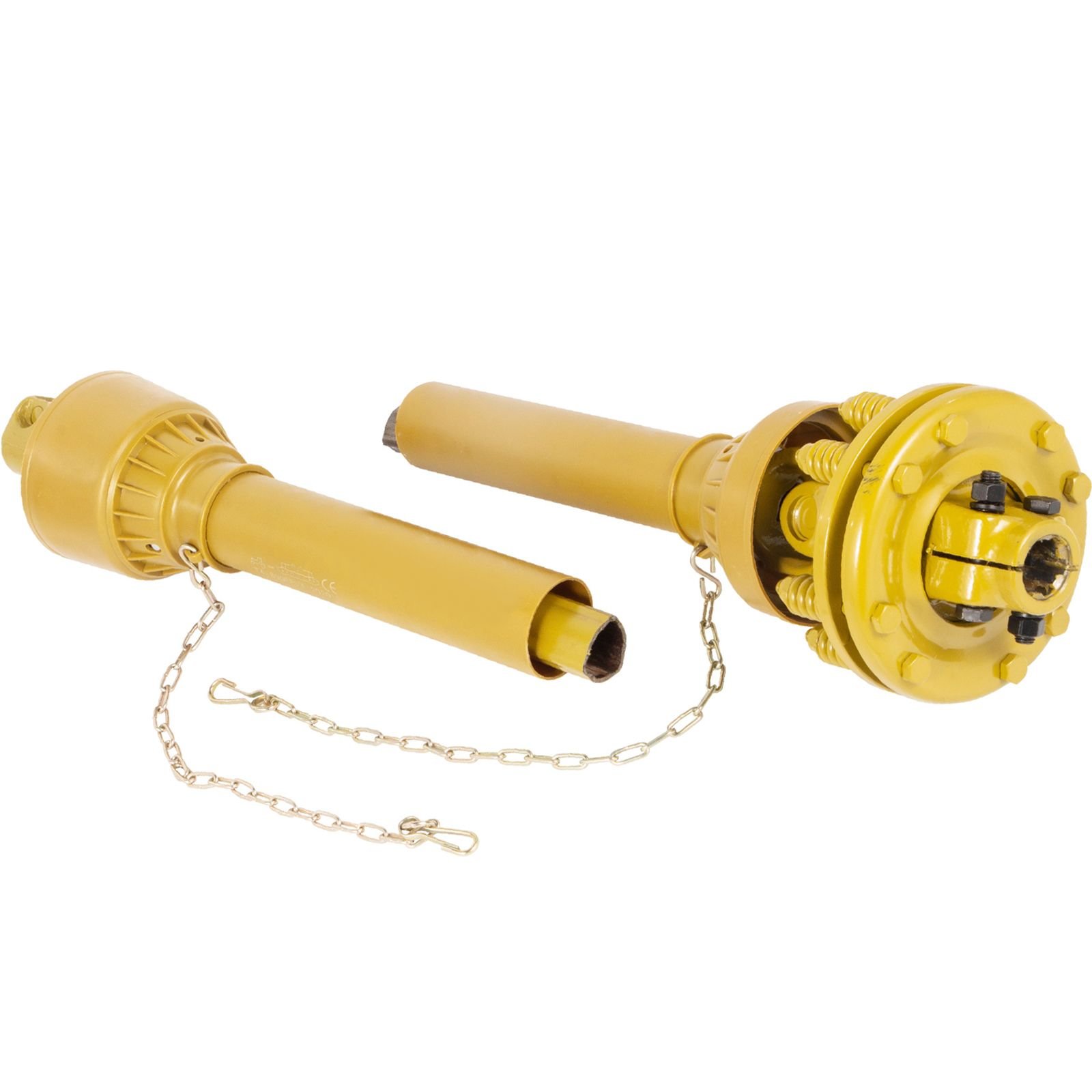

Structure Analysis

The PTO shaft is assembled in a compact structure, consisting of a slip clutch, a telescoping tube, a universal joint, yokes, a plastic shield, and a chain for protection. It allows two speeds on both ends and transfers the power into the equipment.

Simple & Quick Installation

The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to a proper length, please read the manual carefully and remember to deburr the edges after cutting.

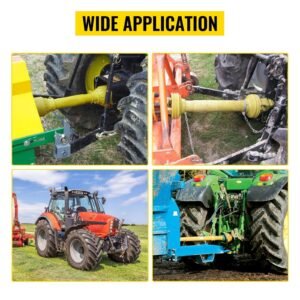

Wide Application

The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.

Specifications

• Model: T4-YⅢP*800mm*4.05.05B*4FFV1

• Series: 4

• Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic

• Tractor End: 1-3/8" x 6 Spline

• Implement End: 1-3/8" x 6 Spline

• Compressed Length: 31.5" / 800 mm

• Extended Overall Length: 41" / 1050 mm

• Max Torque: 900Nm

• Friction Disc Dia.: 7" / 178 mm

• At 540RPM: 35hp, 26Kw, 460Nm

• At 1000PRM: 53hp, 39Kw, 360Nm

• Color: Yellow

Package Content

• 1 x PTO Shaft with Slip Clutch

• 1 x Locking Pin

• 1 x User Manual

• Max Torque:
